1、Equipment Feature

（1）Adopt Pneumatic flip to start tunnel structure, convenient for operation, cleaning, and wire taking;

（2）Using  smart touch man-machine interface, monitoring data, operating button  power settings are all done on the touch screen interface

（3）One-key start function and single start coexistence

（4）The  cooling method adopts the refrigeration machine, the circulating medium  adopts the special antifreeze liquid for the car; the external smoke  removal mechanism is exhausted to the outside through the air duct;

（5）The equipment power can be set within range of 0~100%

2、Equipment main Technical Parameter

（1）Equipment total power: 22kW

（2）Effective diameter of irradiated area: 30mm

（3）Effective irradiation length: 1m

（4）Power supply: AC 380V

（5）Irradiation box size：2010*1100*1650mm（LxWxH）

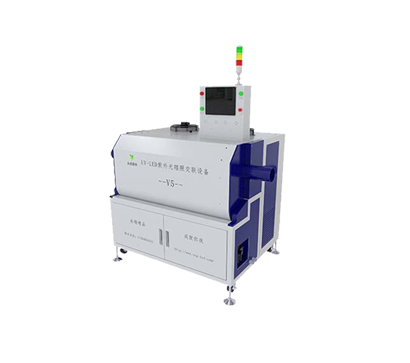

UV Radiation cross-linking equipment Information
